MicroFit MFHC60179 Replaces the Baldwin H9060

MICROFIT MFHC60179
MICROFIT MFHC60179
Representative product image Product image feedback

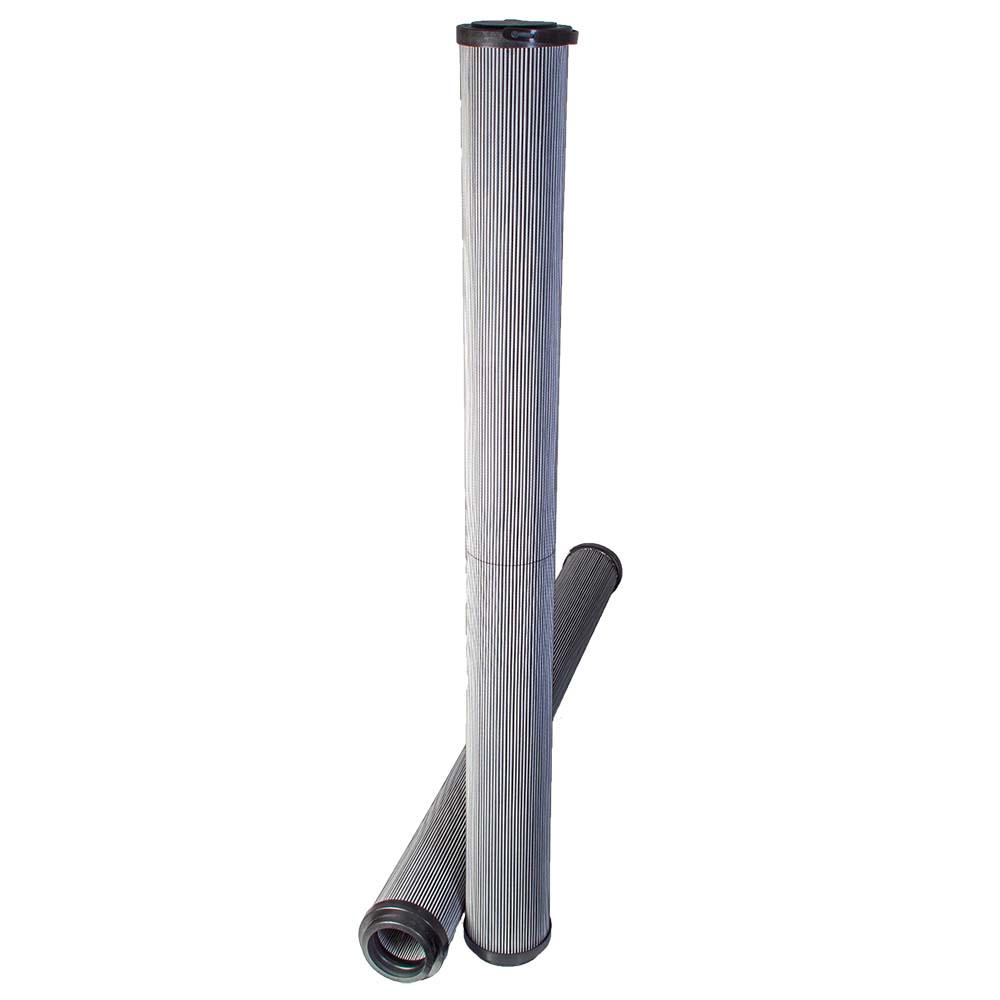

MicroFit® UltraGen III MFHC60179 Coreless Filter | Replaces the Baldwin H9060

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60179 is the MICROFIT® approved replacement to the Baldwin H9060. Engineered and manufactured in Great Britain the MFHC60179

Price Match
2,690.00 kr
2.39 kg
0.0061 m³
243 pcs
United Kingdom
8421.99.90
0.99 kg
0.0044 m³
243 pcs
United States
8421.29.80.90
1.09 kg
0.0061 m³
243 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60179 is the MICROFIT® approved replacement to the Baldwin H9060. Engineered and manufactured in Great Britain the MFHC60179

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 97.5 mm
Inner Diameter 64.5 mm
Length 639.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Baldwin H9060

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Coreless Filter
Outer Diameter 97.5 mm
Inner Diameter 64.5 mm
Length 639.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Viton
Temperature Range -25 - +120°C
