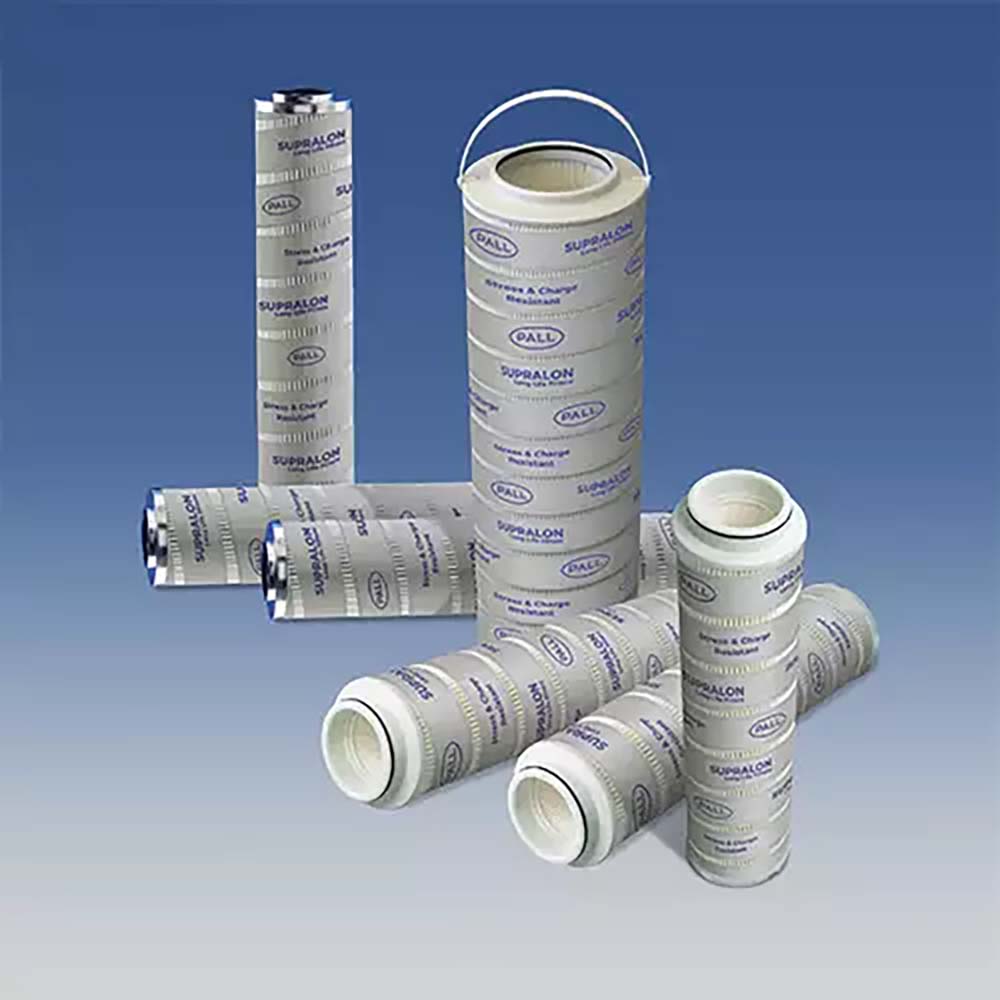

Pall HC9100FRZ4Z Replaces the Pall HC9100FRZ4H
Pall HC9100FRZ4Z Pressure Filter | Replaces the Pall HC9100FRZ4H
HC9100FRZ4Z
Pall
Pall HC9100FRZ4H
Pall
Pall HC9100FRZ4H
Brand:
Pall
Sort by:
Description
Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 4 inches
Key Features Include:
1) New upstream and downstream drainage mesh pairings.
2) Beta ≥ 2000 rating for superior control of particulate contaminants and faster system cleanup rate.
3) Long filter service life.
4) Sustained system protection over the life of the filter.
5) Protects the fluid, filter, and other components from static discharge.
6) Measuring filter performance - Cyclic Stabilization Test (based on SAE ARP4205)
Ships in 60 Days
Regular price €259,40
per
10 shipped Friday, 2 January
Order within 7hrs 17mins
Order within 7hrs 17mins
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | €270,44 |
| 5 - 9 | €264,92 |
| 10 - + | €259,40 |
10
United States
8421.99.90
0.0006 m³
Italy
8421.99.90
United Kingdom
8421.99.90
Description
Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 4 inchesKey Features Include:
1) New upstream and downstream drainage mesh pairings.
2) Beta ≥ 2000 rating for superior control of particulate contaminants and faster system cleanup rate.
3) Long filter service life.
4) Sustained system protection over the life of the filter.
5) Protects the fluid, filter, and other components from static discharge.
6) Measuring filter performance - Cyclic Stabilization Test (based on SAE ARP4205)
Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 1µ @ β200 |
| Efficiency 2 | 4µ @ β1000 |
| Outer Diameter | 70.0 mm |
| Inner Diameter | 33.5 mm |
| Length | 117.0 mm |
| Δ Collapse Pressure | 21 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
Pall Product
Genuine Pall HC9100FRZ4Z
Inspected to ISO 9001:2015
