Fleetguard HF7907 Replacement Return Filter

Fleetguard HF7907
Fleetguard HF7907
Representative product image Product image feedback

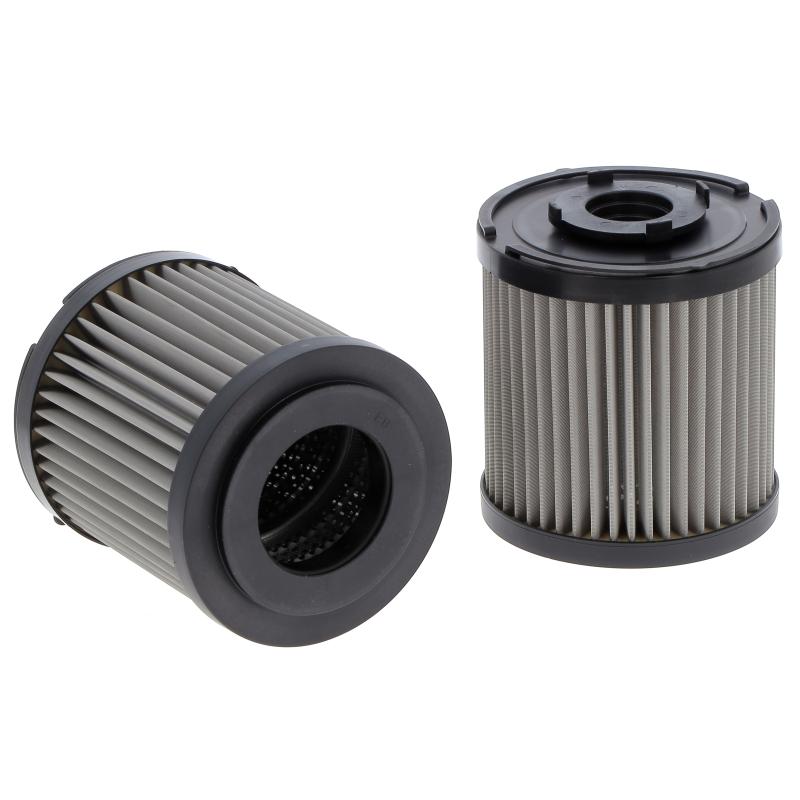

Fleetguard HF7907 Return Filter

Brand: Fleetguard
Description

Fleetguard® HF7907 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
389.00 kr
0.91 kg
0.0049 m³
160 pcs
United States
8421.99.90
0.95 kg
0.0047 m³
160 pcs
Italy
8421.29.80.90
0.76 kg
0.004 m³
160 pcs
France
8421.99.90
1.94 kg
0.0025 m³
160 pcs
United Kingdom
8421.99.90
0.89 kg
0.0025 m³
160 pcs
Italy
8421.99.90
Shipping Terms

Description

Fleetguard® HF7907 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

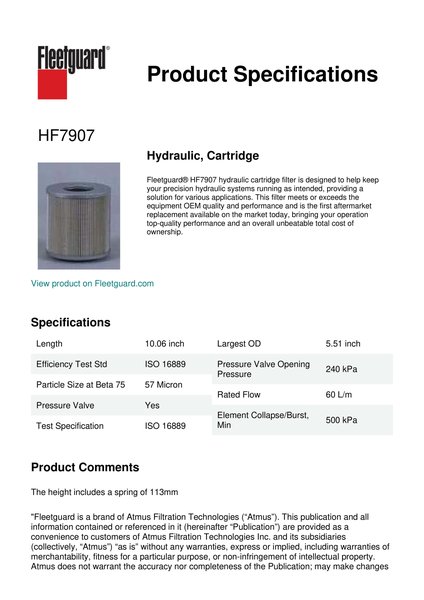

Specification

StyleReturn Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 130.0 mm
Inner Diameter 64.5 mm
Length 141.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF7907

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Return Filter
Outer Diameter 130.0 mm
Inner Diameter 64.5 mm
Length 141.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
