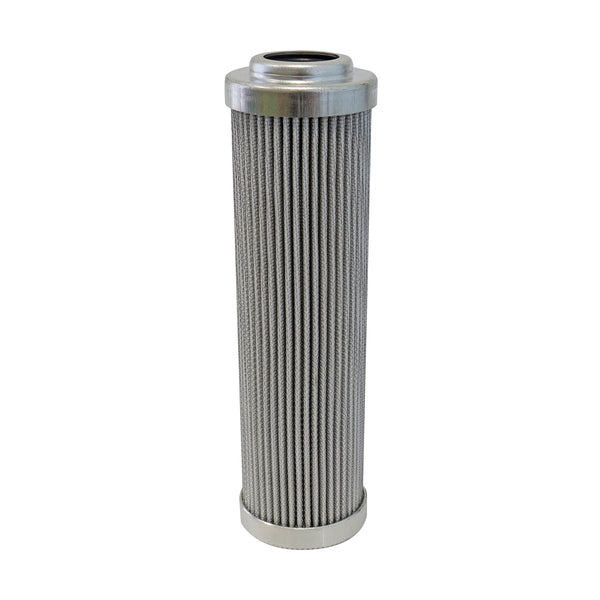

Stauff SE-030-G-20-B/4 Replaces the Stauff SE030G20B/4
Stauff SE-030-G-20-B/4 Replaces the Stauff SE030G20B/4
SE-030-G-20-B/4
Stauff
Stauff SE030G20B/4
Stauff
Stauff SE030G20B/4
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200
Brand:
Stauff
Sort by:
Regular price
€63,95
Unit price
per
Shipped Wednesday, 9 April
0.26 kg
8421.99.90
Germany
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 47.0 mm |
| Inner Diameter | 22.4 mm |
| Length | 153.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 20 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
