Summary

Mann Filter WD 920 Replacement Hydraulics

WD 920
WD 920
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

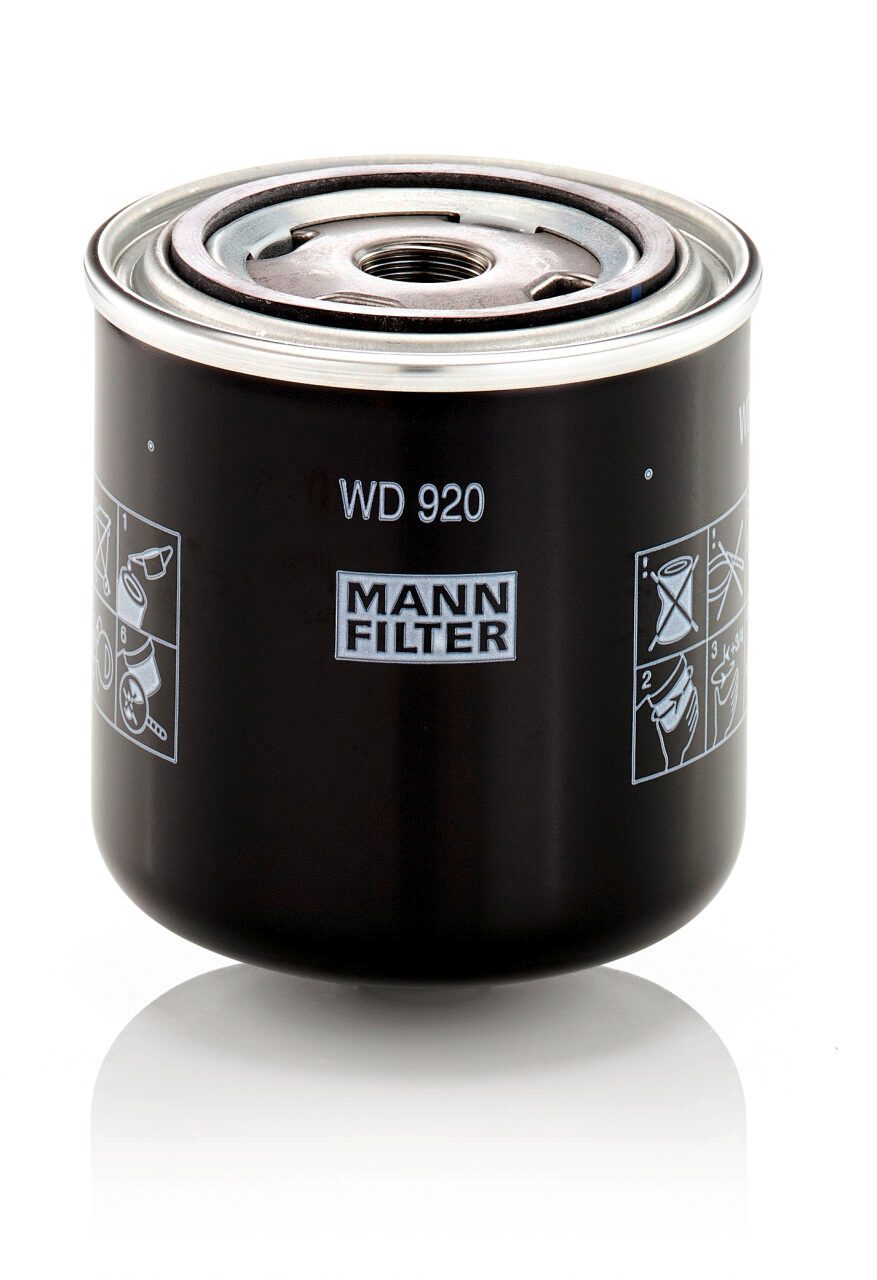

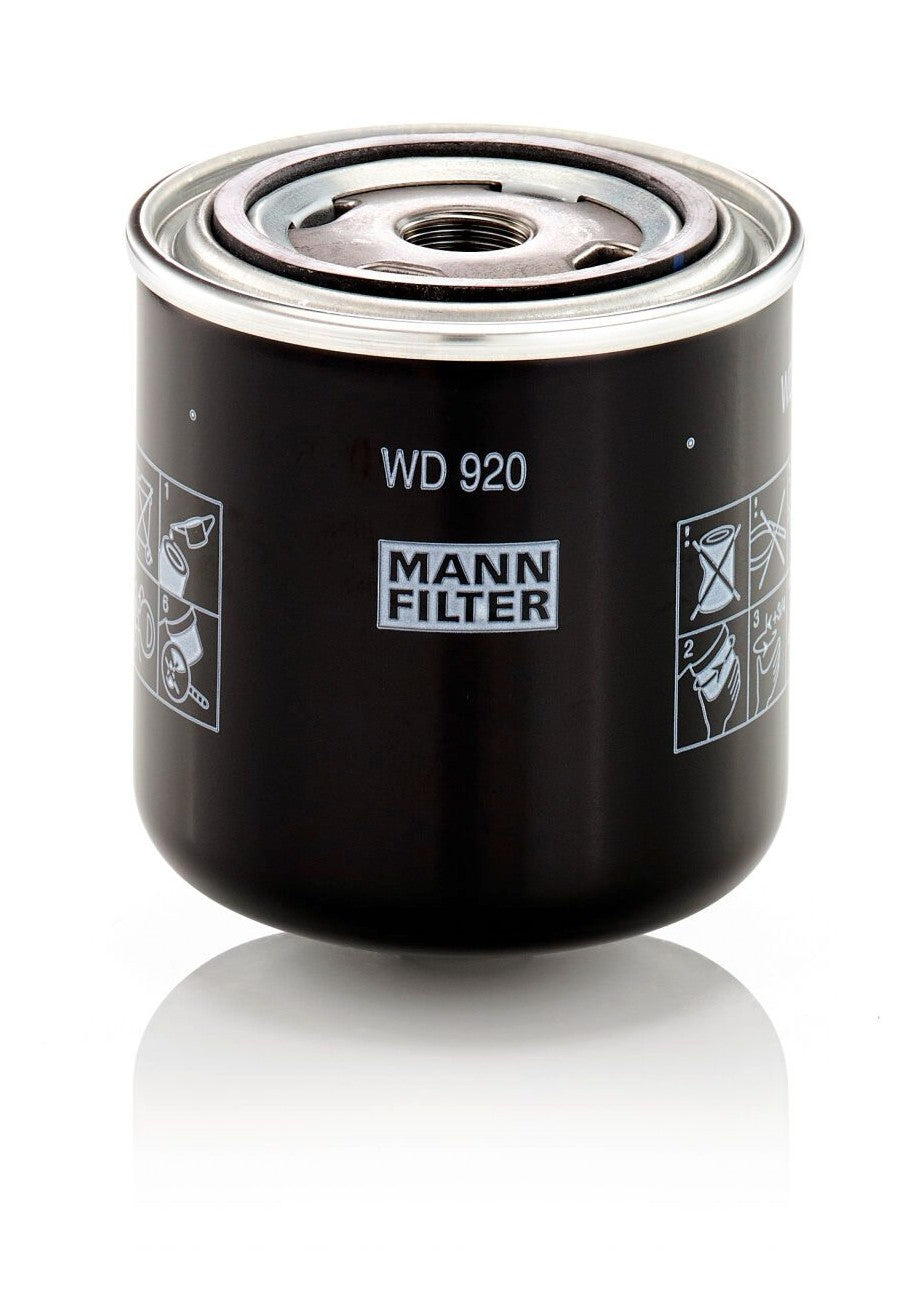

Mann Filter WD 920 Hydraulics

Brand: Mann Filter
Price Match
211.00 kr
0.0009 m³
Germany
8421.29.80
Shipping Terms

Description

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Specification

StyleHydraulics

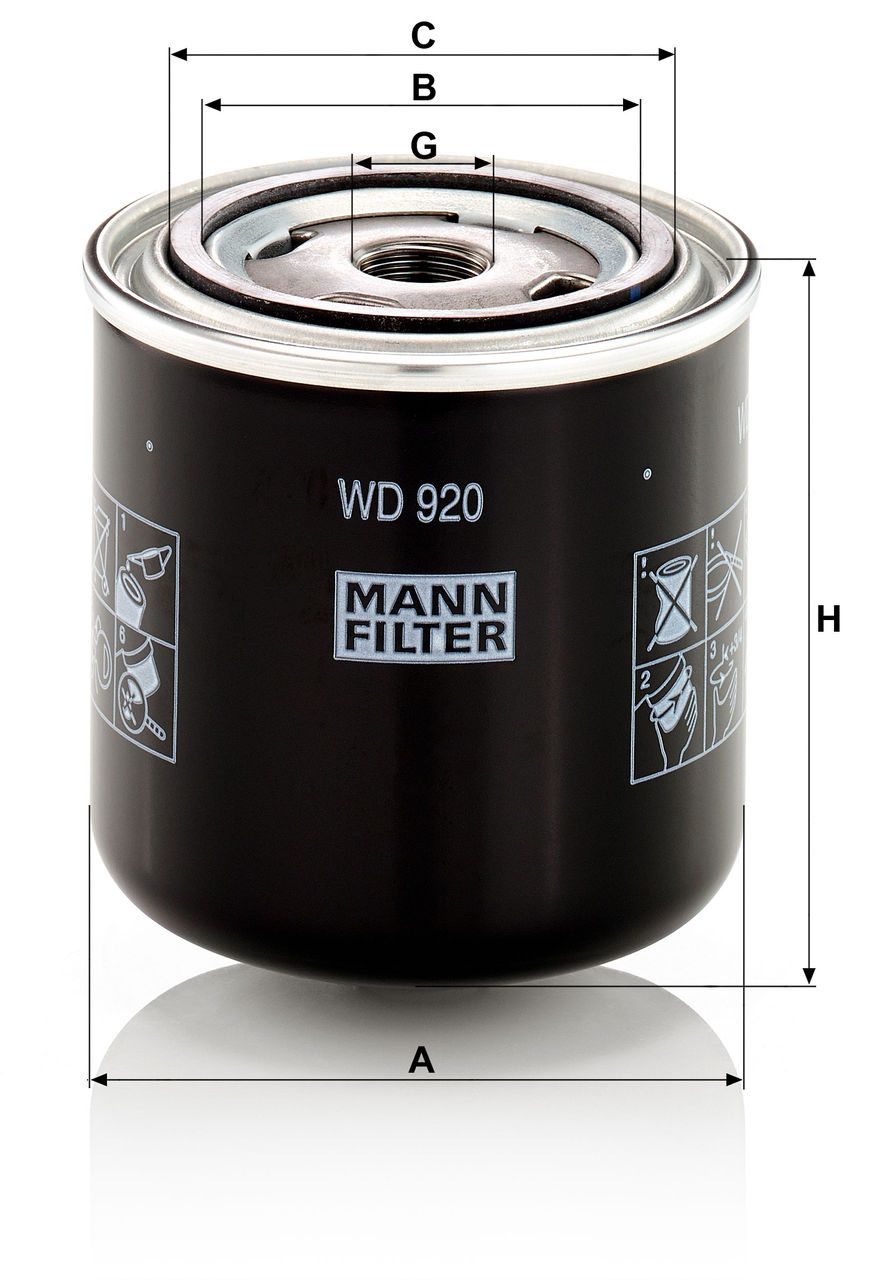

Dimension A 93.0 mm
Dimension B 62.0 mm
Dimension C 71.0 mm
Dimension G 3/4-16 UNF
Dimension H 97.0 mm
Bypass Pressure 2.5 bar

Description

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Mann Filter Brand Logo

Mann Filter Product

Genuine Mann Filter WD 920

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Mann Filter Warranty

Mann Filter Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Hydraulics
Outer Diameter 93 mm
Inner Diameter 62 mm
Length 97 mm
Media Type
Flow Direction
Thread 3/4-16 UN
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range
